Simulation of moving electrons, hydrogen and boron ions in a magnetic field

Physics experiment: simulation of moving electrons, hydrogen and boron ions in a magnetic field

Computer simulation of idea 10 (with error in the program)

Experiment 10

In the following experiments there was an error in the program ( in the procedure Move2_particle, cx:=cx+cc*Ex; cy:=cy+cc*Ey; cz:=cz+cc*Ez; {before error: cx:=cx+cc*Ex; cy:=cy+cc*Ex; cz:=cz+cc*Ex;})

Experiment 10.01:

Using the Leapfrog method

The total kinetic energy Ek of the electrons is not kept constant (0,1 nA)
Generated 100 electrons with 1000 eV. Then slowly changed B-field from 10 G to 1000 G in small steps.

if (amountE=100) and not (Already) then begin
if B<1000E-4 then B:=B+0.0000001 else Already:=true;

{Bh:=B(1 + 2r1 + 10r2) (r1= radius in xy-plane, r2=vertical distance from center cube, at side r1=0,5 & r2=0,5 m)
B at the sides stronger. B up and down also stronger.

electron[i].vz:=(0.5-random)*sp*0.00000000002; 2E-11 m/s -> -5,9E-5 < vz < 5,9E-5 m/s (the initial vertical speed of the electrons)
electron[i].z:=(0.5*s/400-0.0001/2+random*0.00001); (the initial vertical position varies +/- 0,05 mm )

After implenting this Leapfrog method, which was a bit complicated, I tried out the program and it did work.... normally a lot a runtime errors occure but this time nothing.. But anyway I will check the program, although it seems to work well.

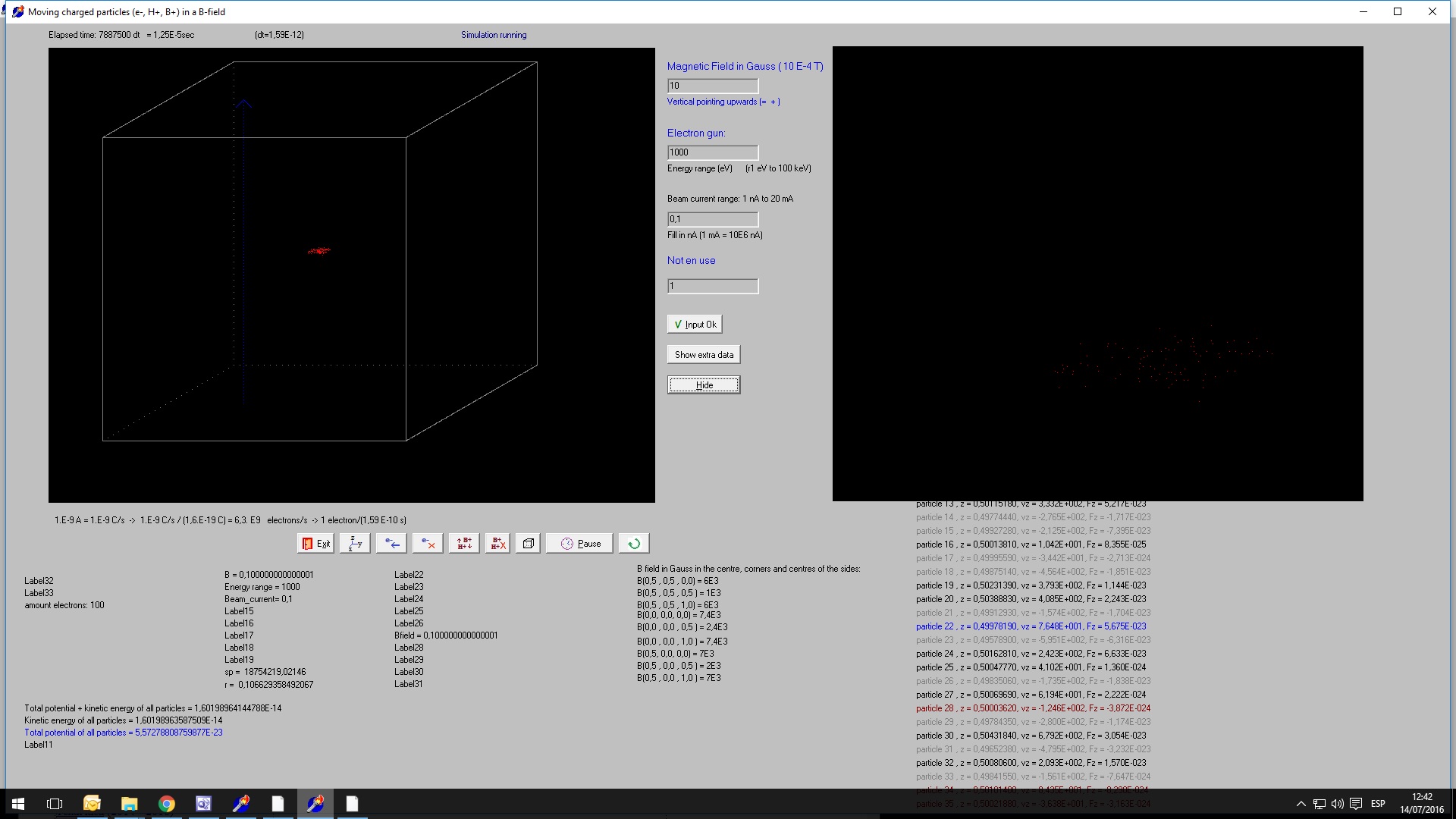

Screenshot exp. 10.01 1.25E-5 s
Video exp. 10.01 1.32E-5 s
During the first 1.25E-5 s the kinetic energy of all particles stayed more or less constant: 1,6019 E-14 s (1,60199-> 1,60198)
The potential energy is slowly decreasing (from about 5.7E-23 to 5.3E-23..).

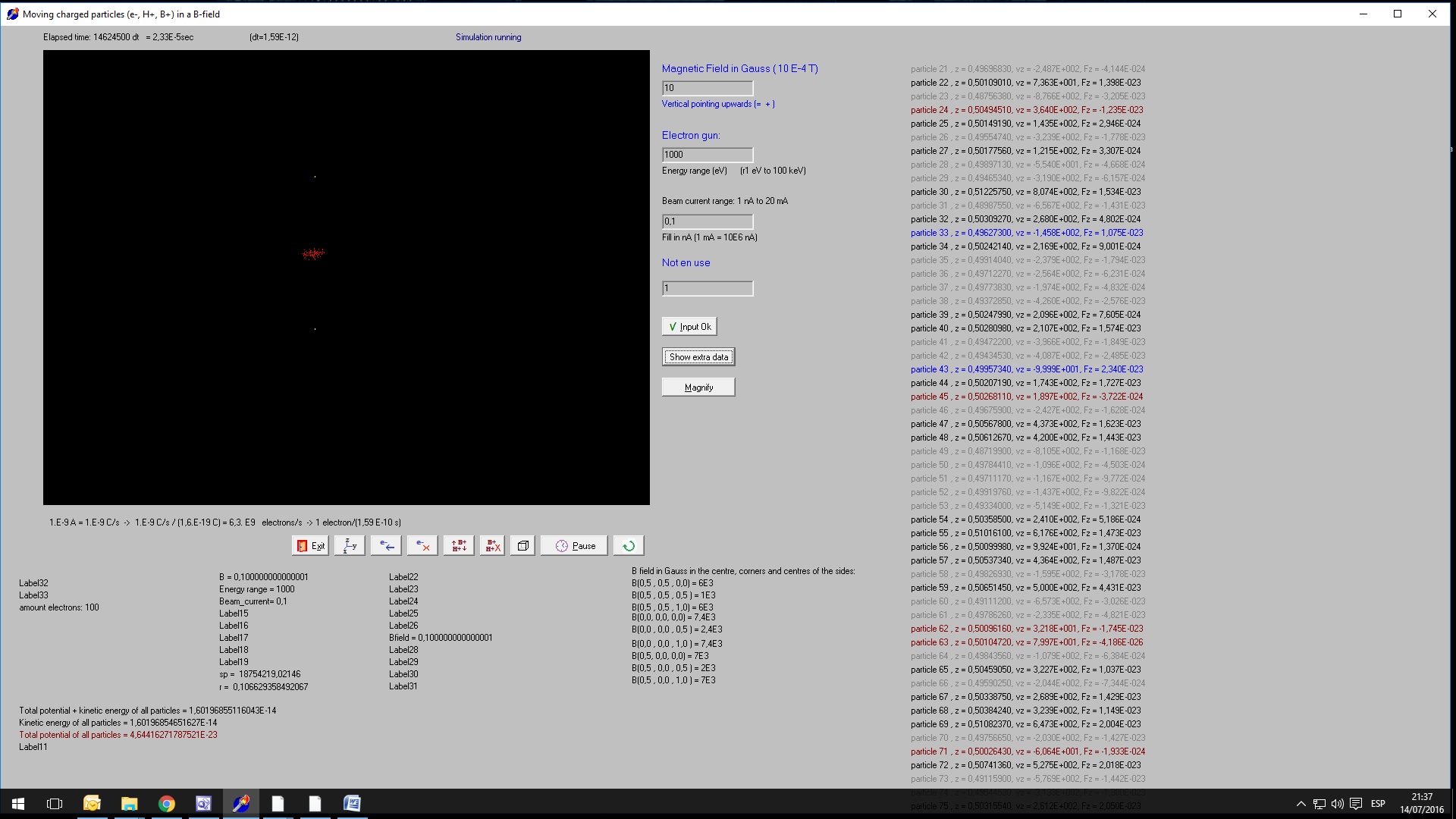

Screenshots exp. 10.01 2.35 E-5 s
After 2,35E-5 s the kinetic energy of all particles is still 1,6019 E-14 . (1,601968 )
The potential energy is 4,6 E-23; the electrons spread out.

Screenshots exp. 10.01 4.13 E-5 s
Ek = 1,6019 E-14 (1,601916957)
Ep = 3,7 E -23

-------------

Experiment 10.02:

Using the Leapfrog method

The total kinetic energy Ek of the electrons is not kept constant (0,1 nA)
Generated 200 electrons with 100 eV. Then slowly changed B-field from 10 G to 1000 G in small steps.

if (amountE=200) and not (Already) then begin
if B<1000E-4 then B:=B+0.0000001 else Already:=true;

B-field constant everywhere

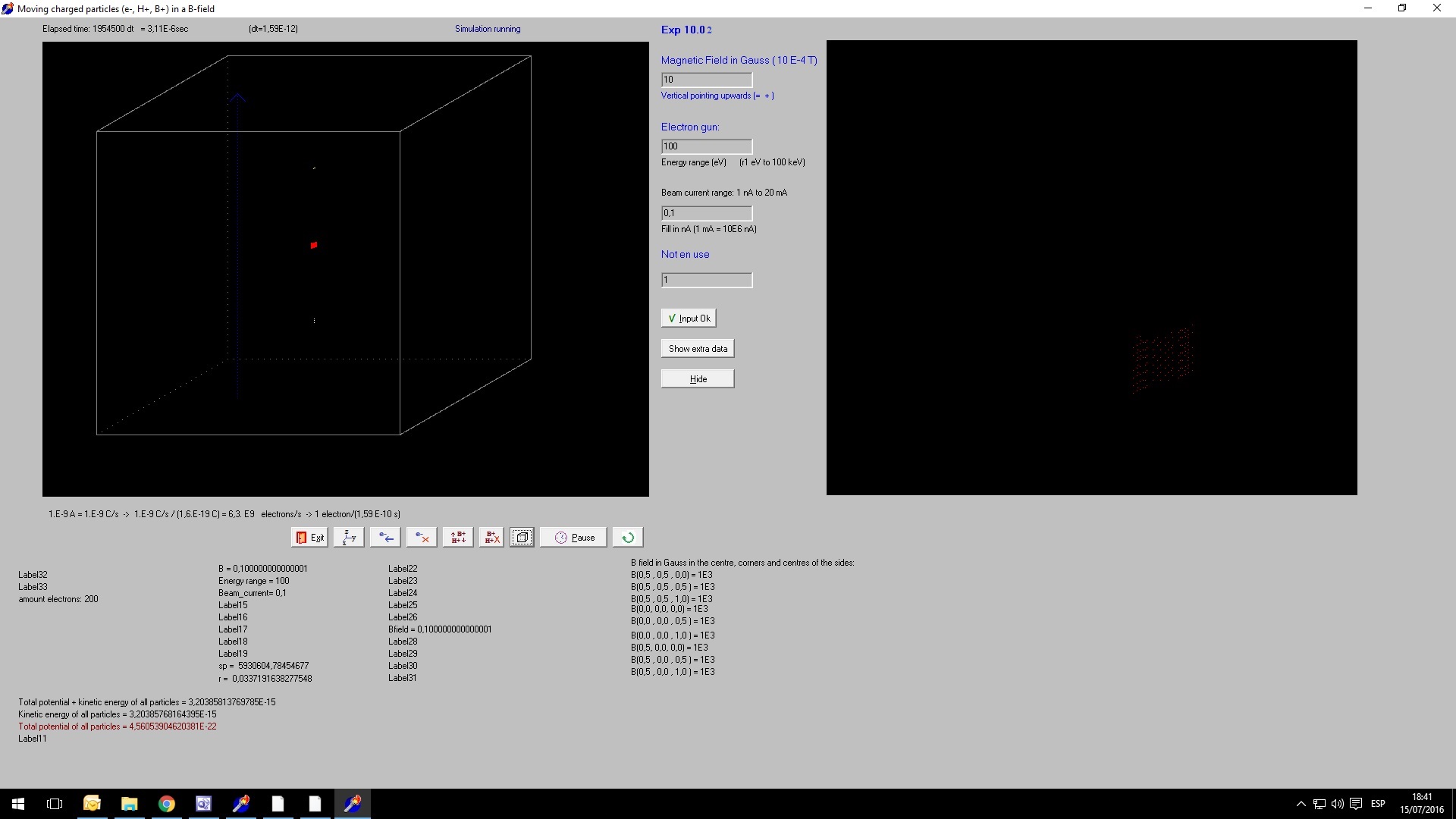

Screenshot exp. 10.02 3,11 E-6 s. (the electrons spread out)

---

Experiment 10.04:

Using the Leapfrog method

The total kinetic energy Ek of the electrons is not kept constant (0,1 nA)
Generated 200 electrons with 100 eV. Then slowly changed B-field from 10 G to 1000 G in small steps.

if (amountE=200) and not (Already) then begin
if B<1000E-4 then B:=B+0.0000001 else Already:=true;

B-field constant everywhere

electron[i].vz:=(0.5-random)*sp*0.000000000002; 2E-12 m/s -> -5,9E-6 < vz < 5,9E-6 m/s (the initial vertical speed of the electrons)
electron[i].z:=(0.5*s/400-0.0001/2+random*0.00001); (the initial vertical position varies +/- 0,05 mm )

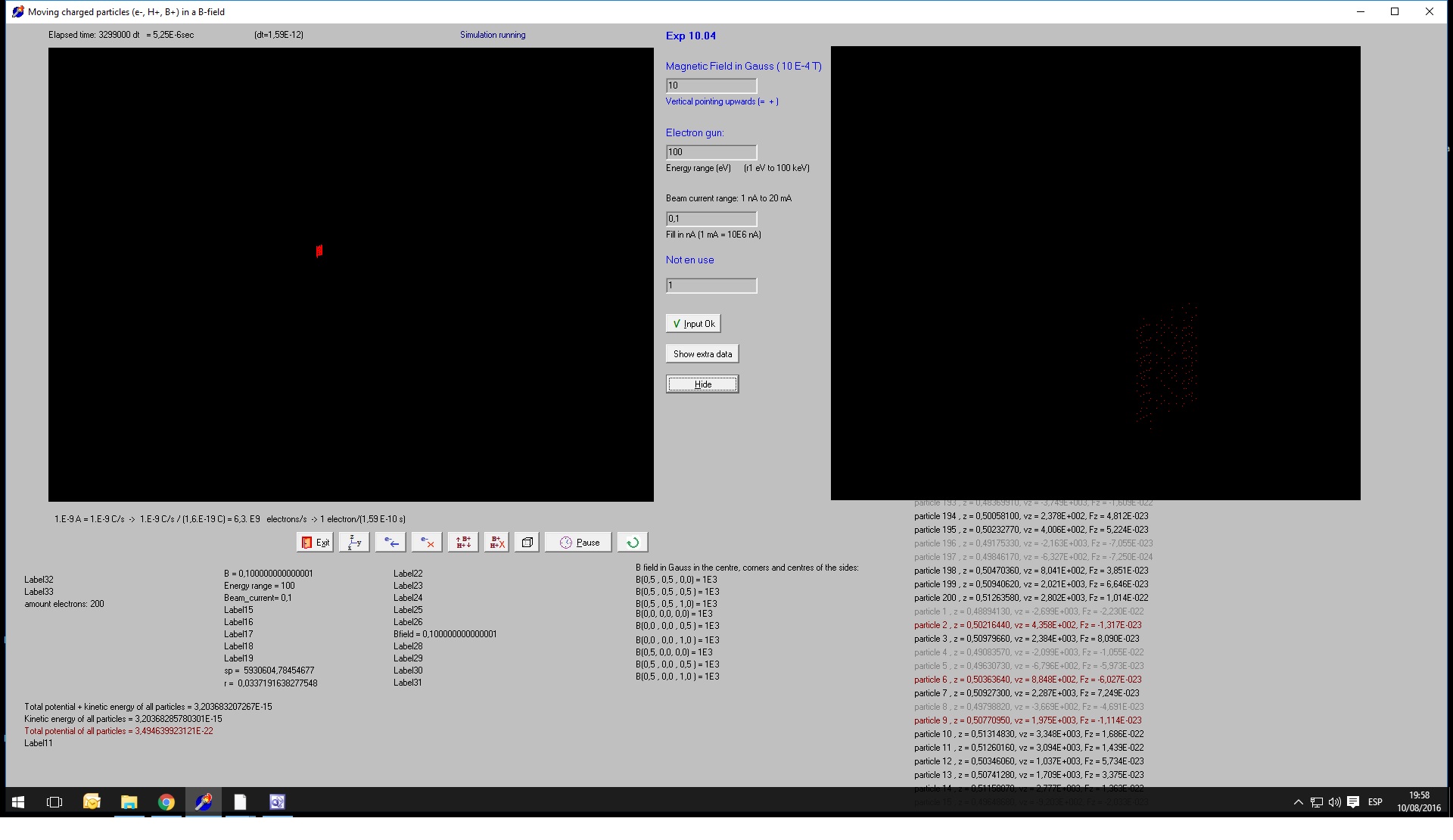

Screenshots exp. 10.04 5,25 E-6 s (the electrons spread out)

Experiment 10.05:

Using the Leapfrog method

The total kinetic energy Ek of the electrons is not kept constant (0,1 nA)
Generated 200 electrons with 100 eV. Then slowly changed B-field from 10 G to 1000 G in small steps.

if (amountE=200) and not (Already) then begin
if B<1000E-4 then B:=B+0.0000001 else Already:=true;

B-field constant everywhere

electron[i].vz:= 0 (the initial vertical speed of the electrons)
electron[i].z:=(0.5*s/400); (the initial vertical position not varies )

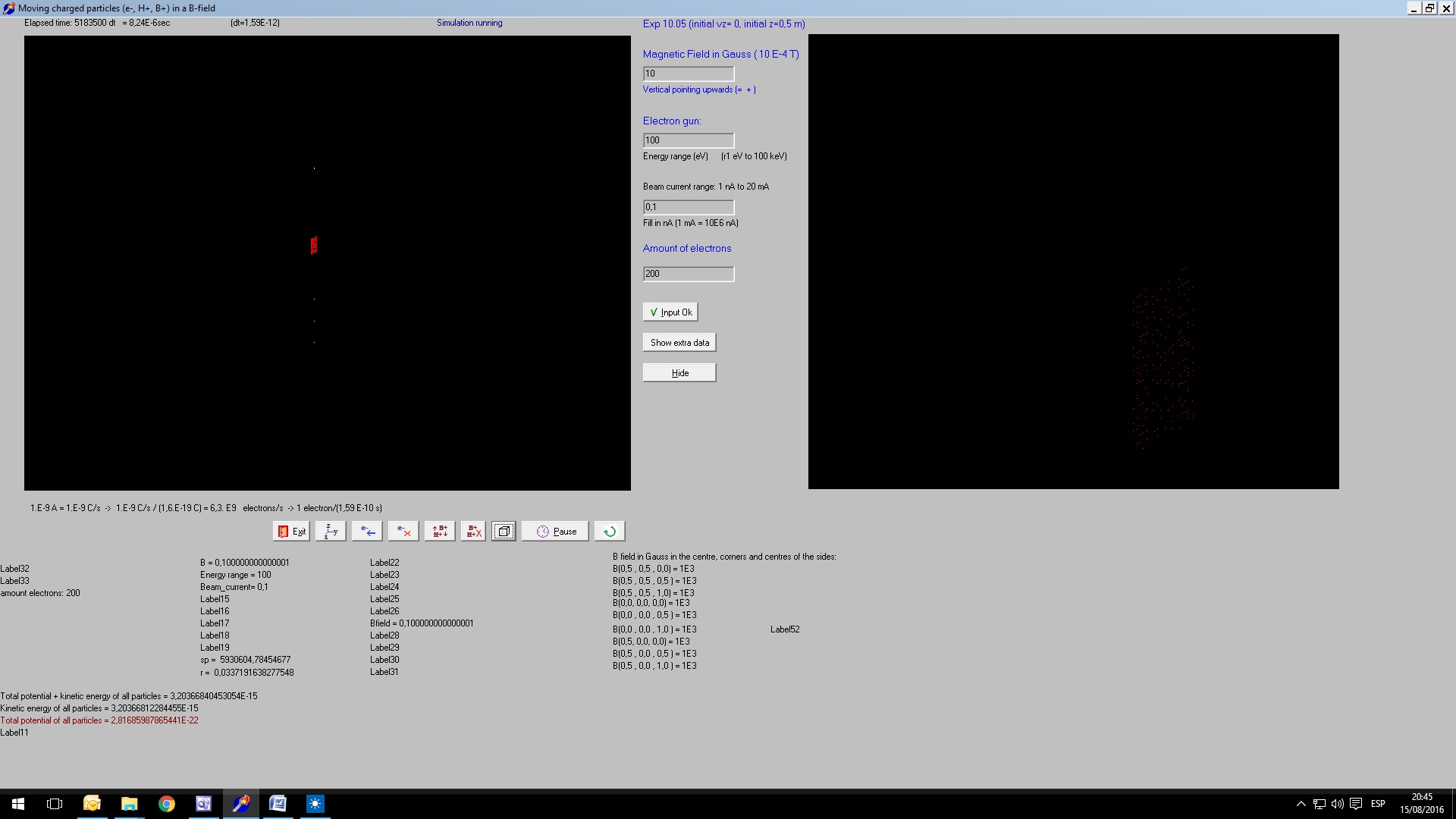

Screenshots\Exp. 10.05 8,24 E-6 s.jpg (electrons spread out)
